Markets Applications

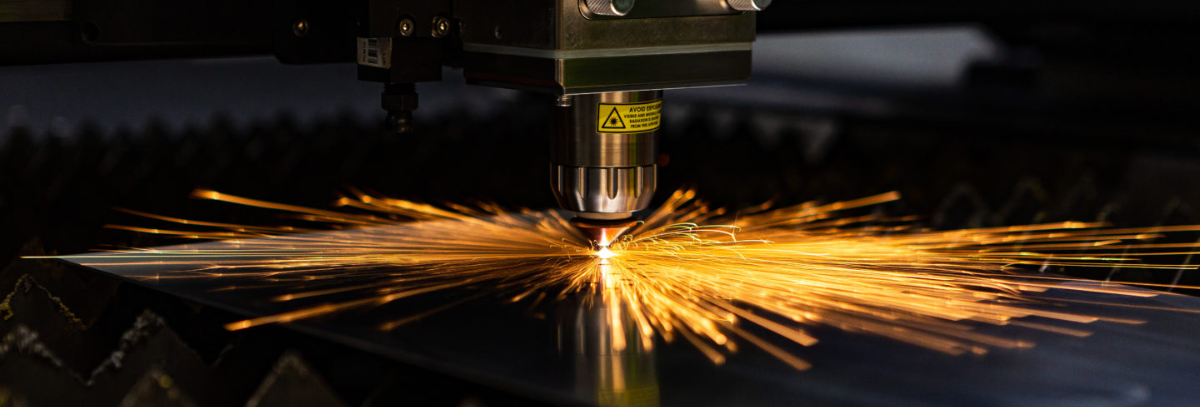

Applications of fiber lasers expend enormously from material processing, telecommunications, spectroscopy, medical treatments, and recently directed energy weapons against missile and drone. Legendary low index PC (Polymer Clad) & 200°C operating SH (High Power Clad) series, have been tested and being used by major fiber laser industries. Utilizing our fluorinated acrylate polymer and silsesquioxane chemistry, PC series can provide unique UV curable polymer coatings with superb properties: refractive indies from 1.452 down to 1.320, more than 93% transmittance in the Near UV-Visible-Near IR range and excellent adhesion for long term stability in harsh operation environment.

Application:
Double Cladded Fiber (DCF)
Laser Description:
UV curable low refractive index clad resins
Related Products:
PC-HA Series
PC-NP Series
SH-HT Series

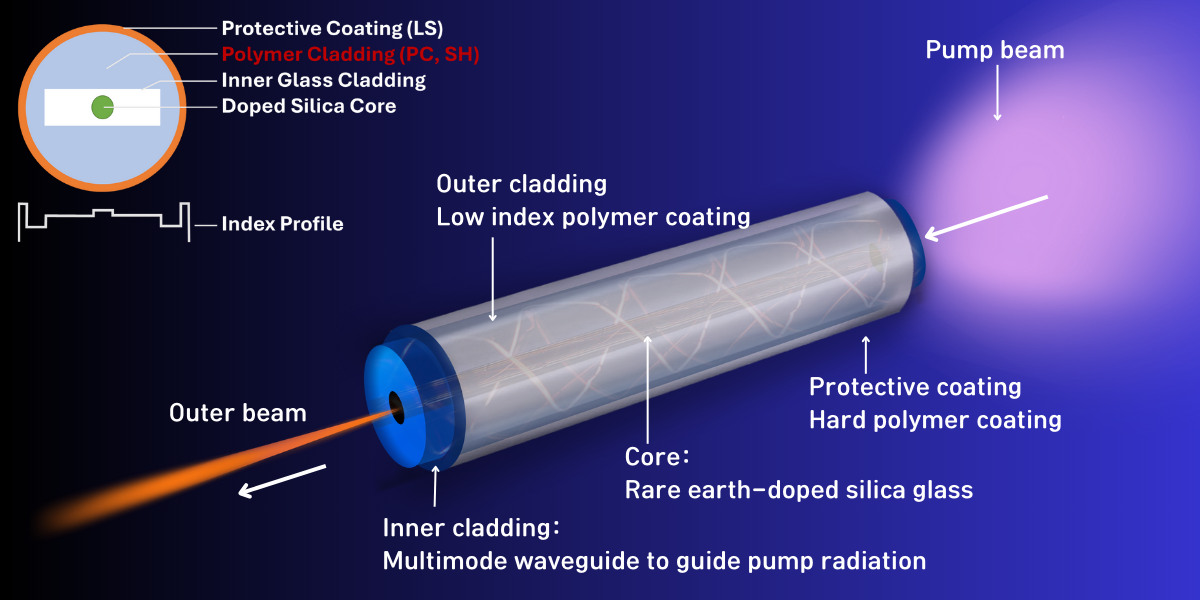

Application:
Hard Cladded Fiber (HCF) Laser
Description:
UV curable low refractive index hard clad resins
Related Products:
PC-HA Series
PC-NP Series
SH-HT Series

Application:

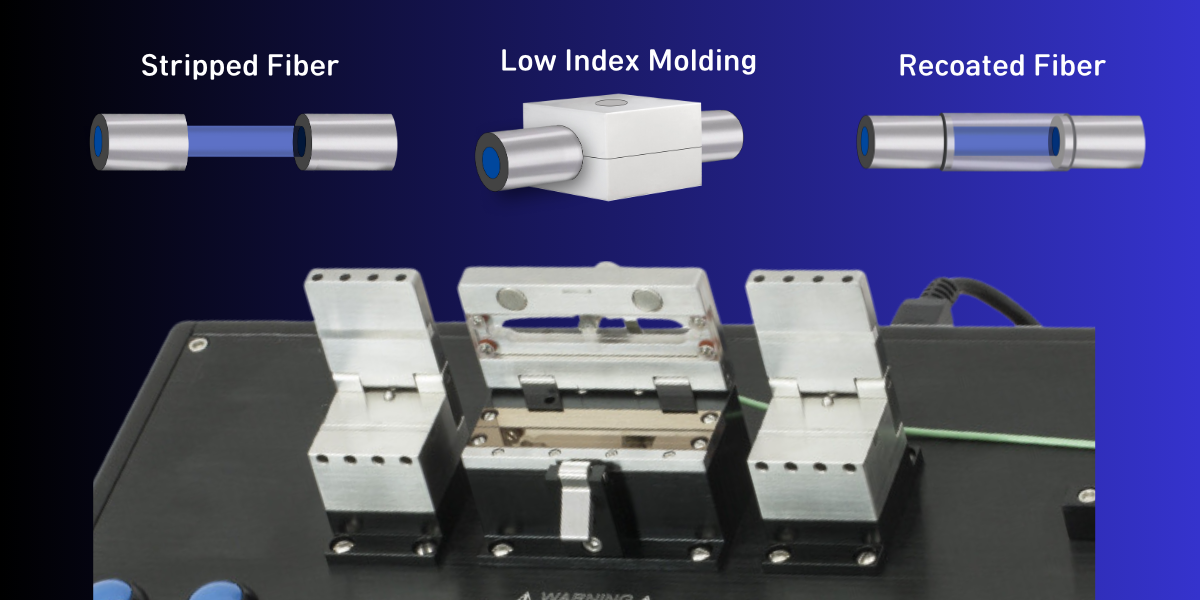

Fiber splicing and low index recoating
Laser Description:
UV curable low refractive index clad resins for fiber recoating
Related Products:
PC-HA Series
PC-NP Series
SH-HT Series

Application:

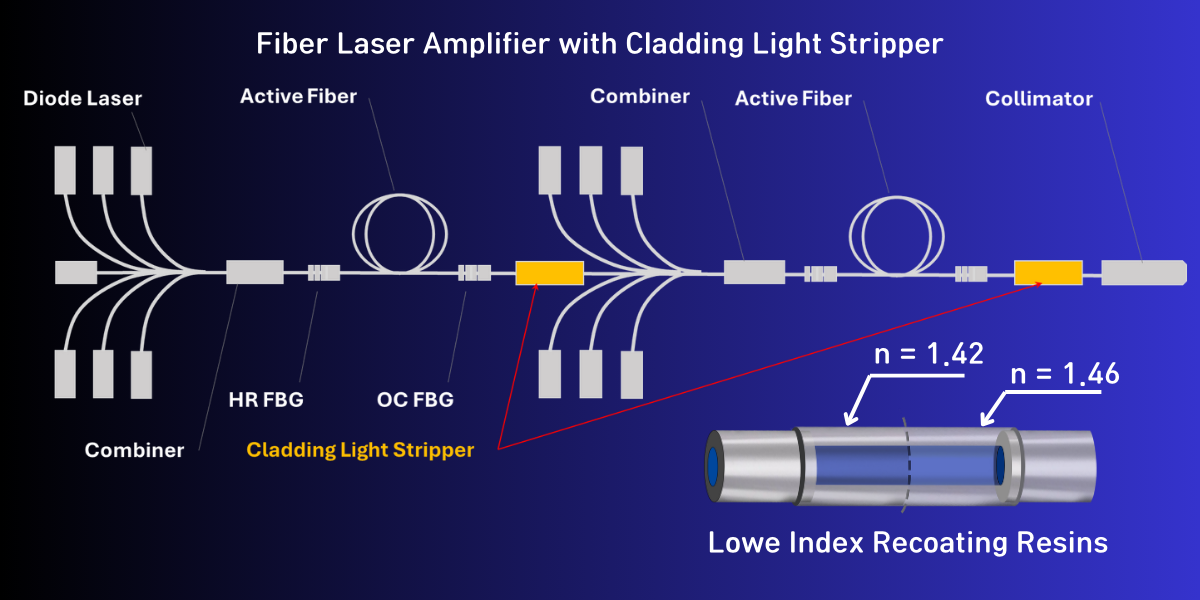

Cascaded Light Stripper Recoating
Laser Description:
UV curable low refractive index resins for light stripper
Related Products:
PC-MS/MSH Series
SH-MS/MSH Series

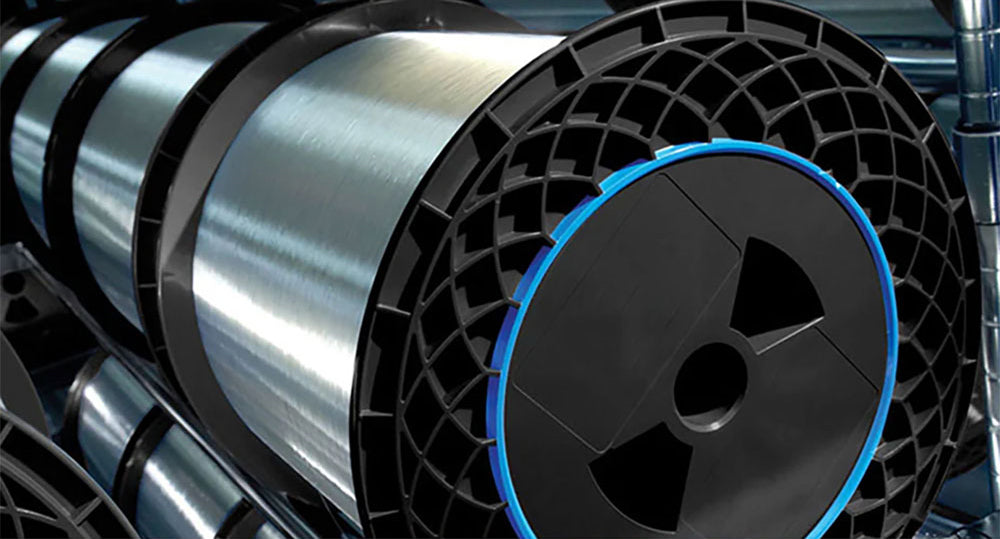

OPTICAL FIBER SENSOR
Optical fiber technology has been used not only in telecommunication, but also in measuring pressure, temperature, vibration, position detection, etc. Last 20 year, the application of optical fiber sensor expand further into spectroscopy in physics, chemistry, biology and medicine. These implementation requires the long-term reliability of the optical fiber in harsh industrial and chemical environments. Primary (LP) & Secondary (LS) coating series are UV curable acrylates useful for the optical fiber needs ultrahigh speed fiber drawing, high temperature stability, biocompatibility, low micro-bending attenuation, and design flexibility.

Application:

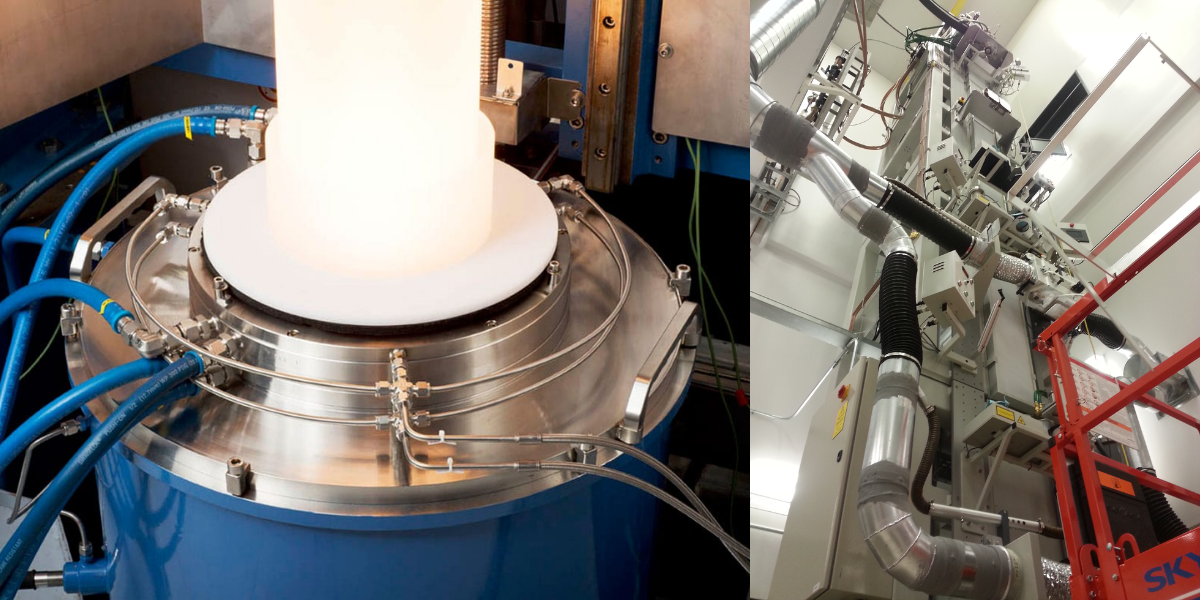

Tele-communication optical Fiber
Laser Description:
UV curable acrylates for ultra high speed drawing
Related Products:
LP Series
LS Series
LP/LS-HT Series

Application:
High Temperature Resistant Optical Fiber
Description:
UV curable silsesquioxane for 250°C oper-ation
Related Products:
LP-HT Series
LS-HT Series

DISPLAY & OPTICAL FILM

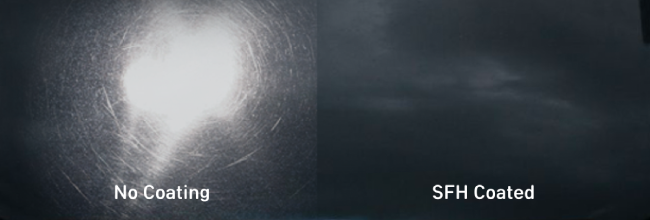

Combining low refractive index and hard coating enable not only guiding and manipulating light, but also making the films more scratch-resistance. Controlling and managing refractive index of coating become the core technology of optical film industry. Low refractive index (low index 1.330 to high index 1.670) SFH series are widely used for various optical function like, minimizing reflection and maximizing transmittance, wave-guide channels for virtual (augmented) reality (AR) display, light direction of LCD backlight and OLED.

Application:

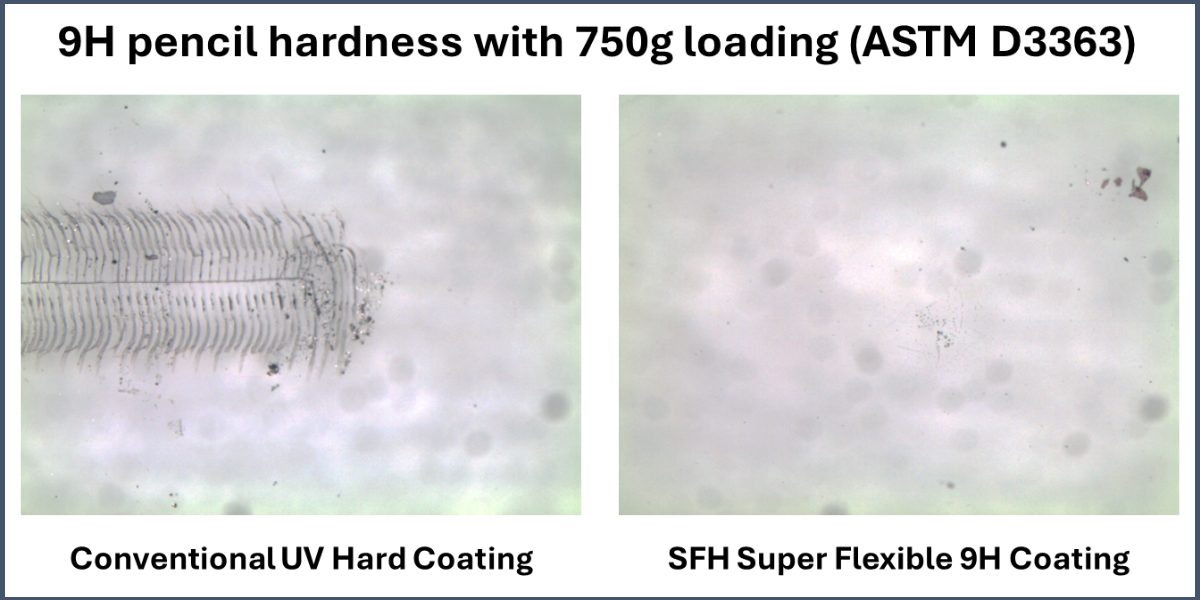

9H surface hardness with 1R inner and 10R outer flexibility
Laser Description:
UV curable siloxane for 9H flexible hard coating
Related Products:
SFH Series

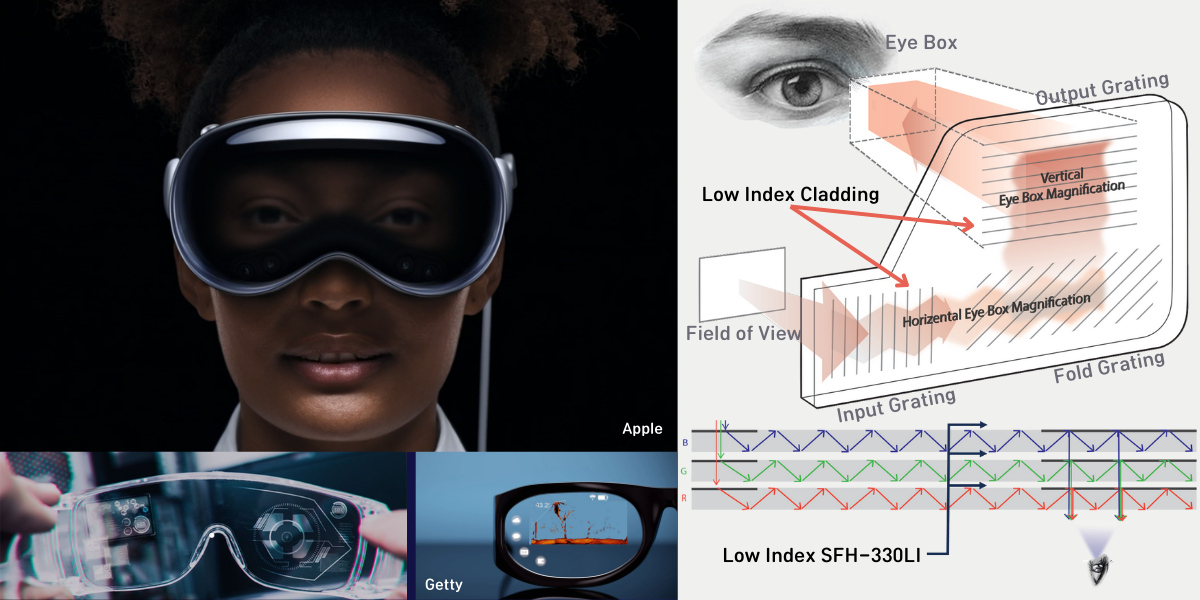

Application:
Augmented (Virtual) Reality Goggle
Description:
UV curable low refractive index clad for light guide channels
Related Products:
SFH-LI Series
SFH-HI Series

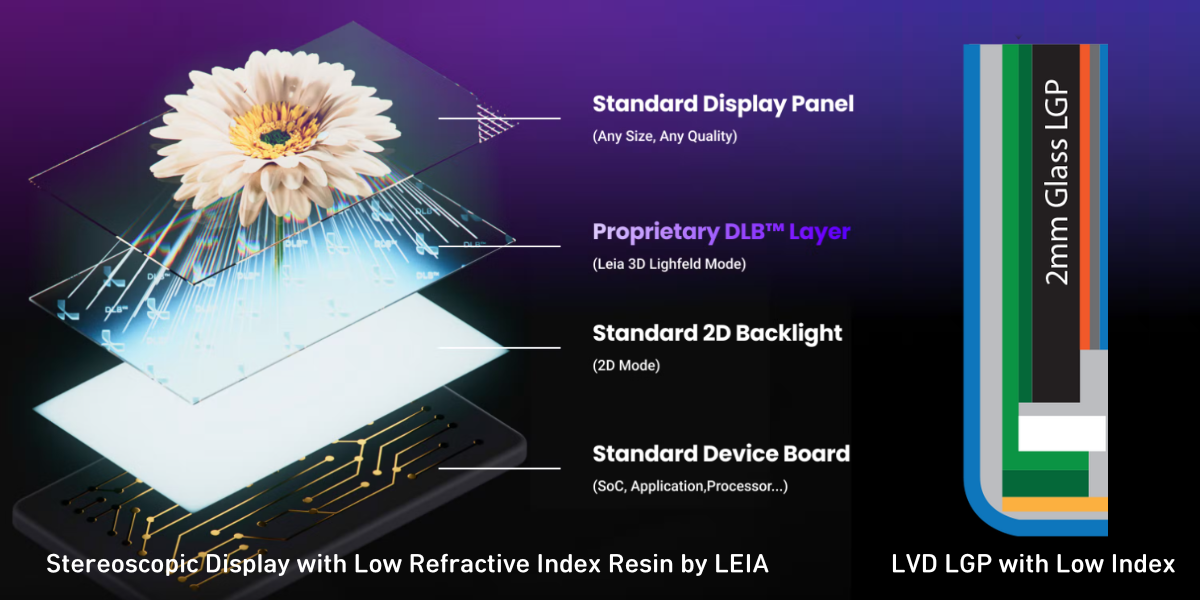

Application:
Stereoscopic 3D Display & LCD Back-light Unit Light Guide
Description:
UV curable low refractive index 1.340 laminating adhesive
Related Products:
SFH-LI Series

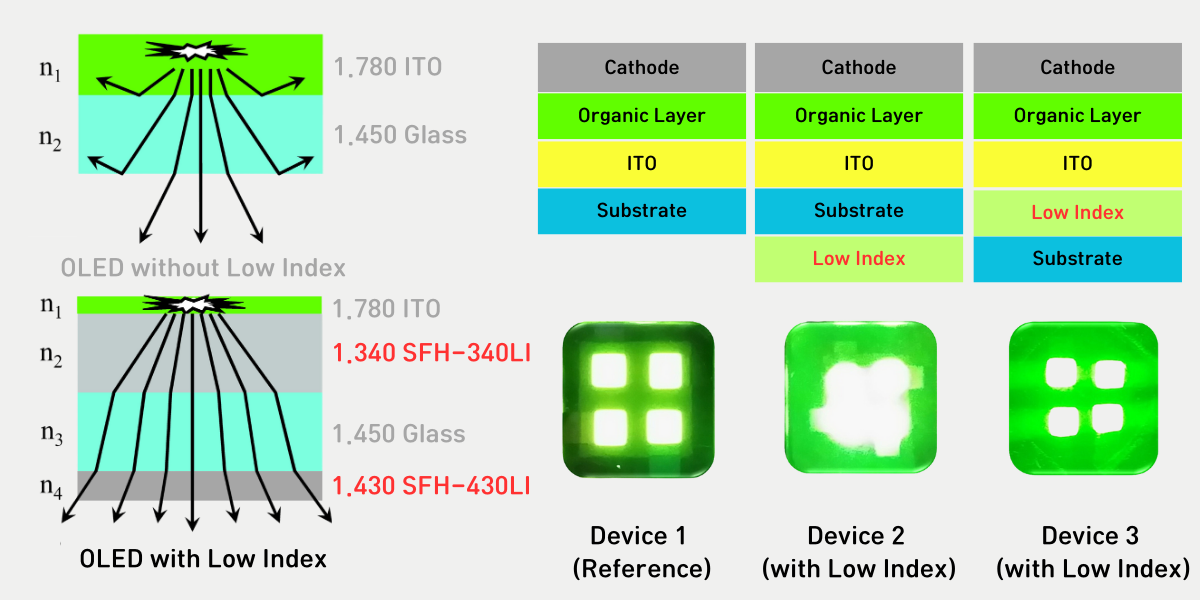

Application:
OLED LED Light Extraction Layers
Laser Description:
UV curable low refractive index for impr-oving light extraction of OLED & LED
Related Products:
SFH-LI Series

OPTICAL ADHESIVE

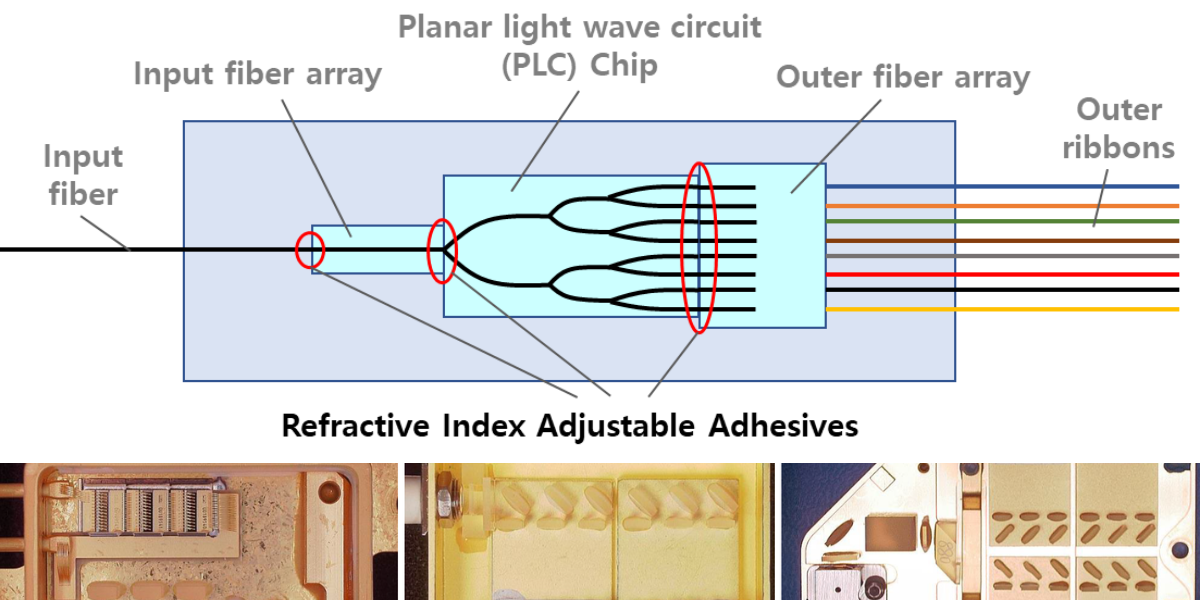

The refractive index control, high thermal reliability, and curing shrinkage control are crucial material technologies required for the optical devices used in fiber laser, tele-communication and optical sensors. OA series are designed for joining optical paths and fixing optical devices with low shrinkage maintaining strong adhesion with metal and plastics. The refractive index of OA series arrange from 1.330 to 1.630 with thermal stability up to 280°C.

BIO-ANALYSIS PC-BO SERIES

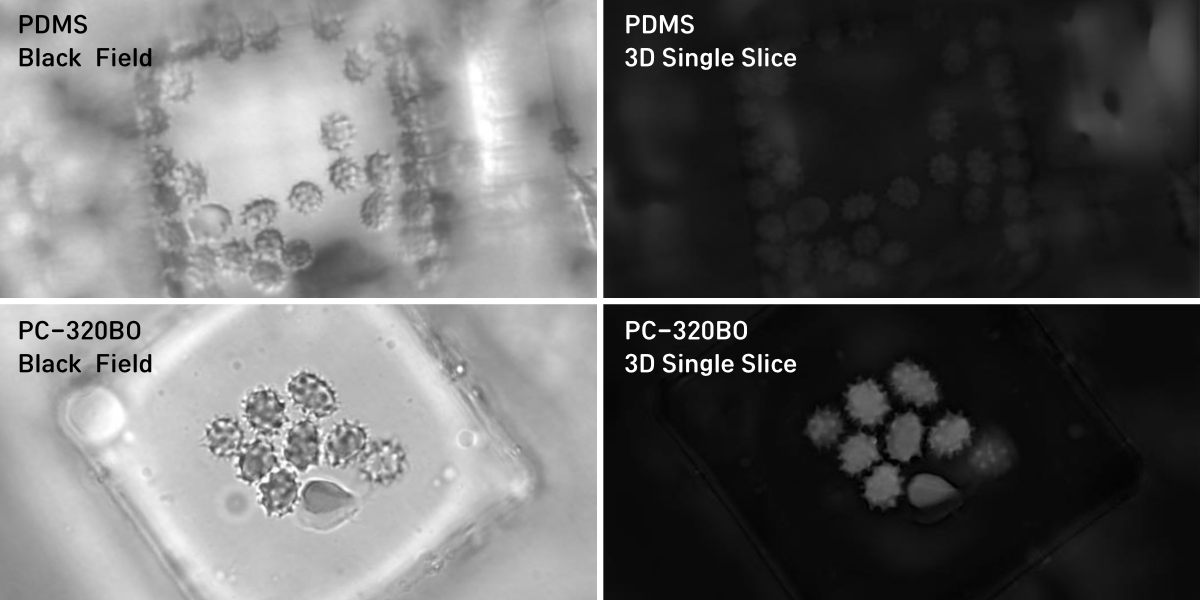

Bio-fluidic devices, pico-liter wells, elastomeric micro-pillars, micro-chamber arrays can be created by micro mold transfer or micro imprinting techniques for real-time 3D filming of living cell. PC-BO UV curable resin has the world’s lowest refractive index 1.320 matching water index. The micro-structure constructed with PC-BO series enable highest quality holotomography & fluorescence microscopy 3D images ever. Devices with PC-BO series pass cytotoxicity test and have no fluorescence perfect solution for living cell analysis

Application:
Holotomography & Fluorescence Micros-copy
Description:
World’s the lowest index 1.320 UV curable structuring resin matching water H2O index
Related Products:
PC-BO Series

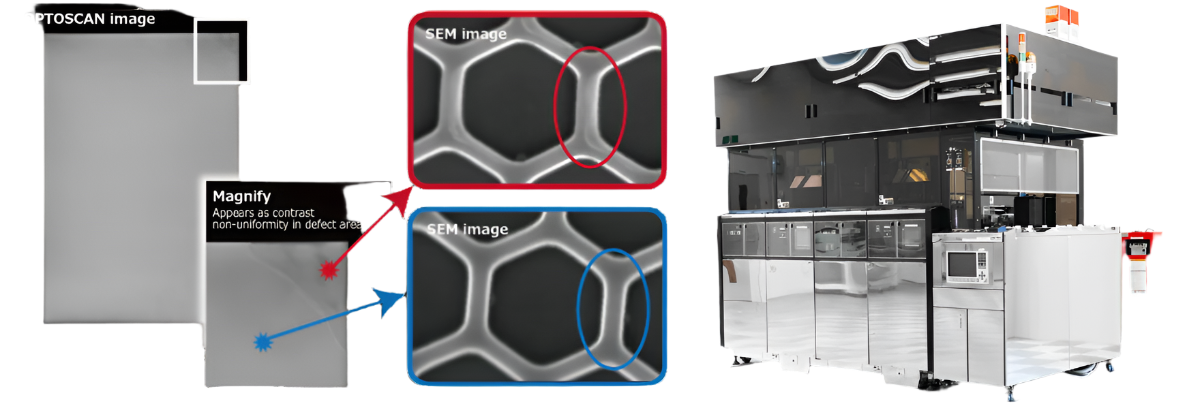

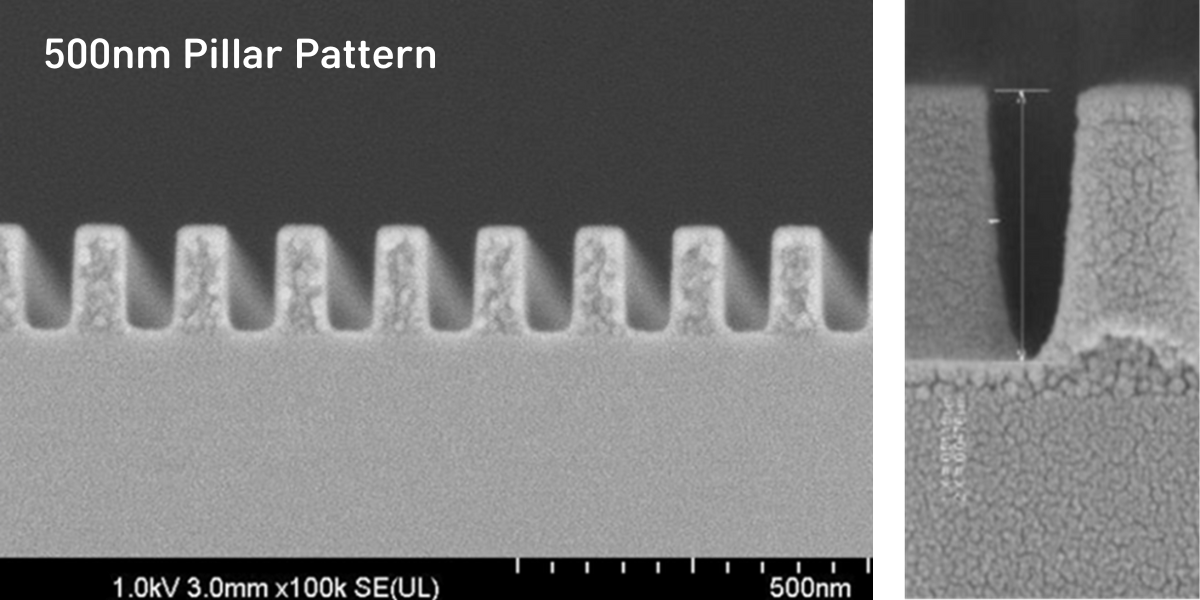

NANO IMPRINT PC-NI SERIES
Nano imprinting (nanoimprint lithography) is a method used in microfabrication to create patterns at the nanometer scale. UV curable fluorinated PC-NI resins are used for producing low surface energy (non-stick) replica nano-molds. By nanoimprint lithography, PC-NI series are used to produce diffractive optical elements (DOE), diffuser for 3D sensor, well structure for DNA sequencer chip, combiner for augmented reality glasses, wire grid polarizer and waver plate for projector & HUD, aspherical lens structure on CMOS device, wafer for image sensor, diffractive grating on compound semiconductor substrate for DFB laser, and anti-reflective moth-eye structure on lens surface.

Application:
Nano Imprinting (Nanoimprint Lithography NIL)
Description:
Fluorinated UV curable resins for low surf-ace energy replica mold
Related Products:
PC-NI Series

NANO 3D PRINT PC-ND SERIES

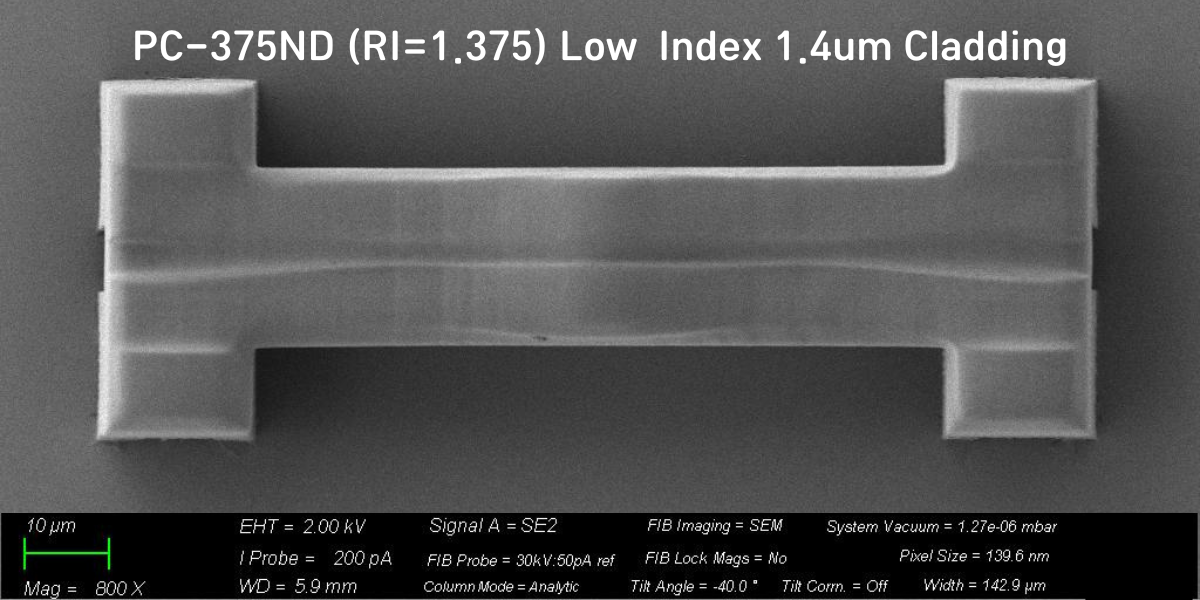

Two-photon polymerization (2PP) is 3D printing technology that enables the creation of ultra-precise and complex micro- and nano-scale 3D structures with submicron features and unparalleled shaped accuracy. PC-ND series is the world’s first TPP nano 3D printable resin with adjustable refractive index from 1.360 to 1.670. The refractive index of micro-structure can be designed to maximize the optical effect of 3D micro-optics, microlens arrays, freeform lenses, mirrors, photonic integrated circuits, waveguide, photonic crystals, and metamaterials such as circular broadband polarizers.

Application:
Nano 3D printing with low refractive index
Description:
World’s first nano 3D printable (TPP poly-merization) low refractive index resin
Related Products:
PC-ND Series

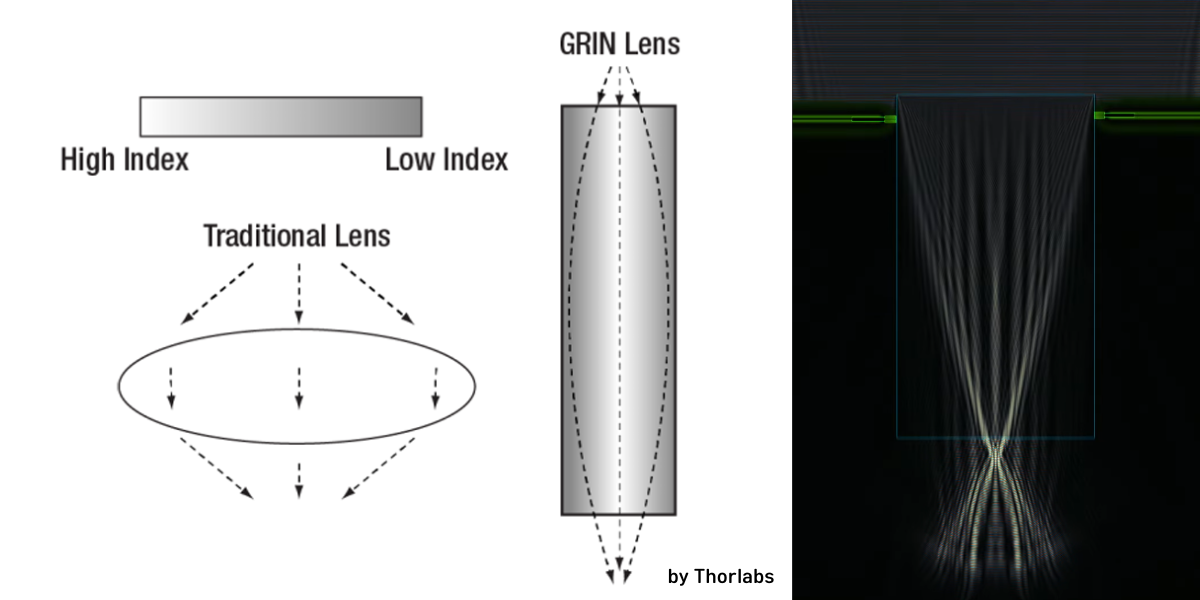

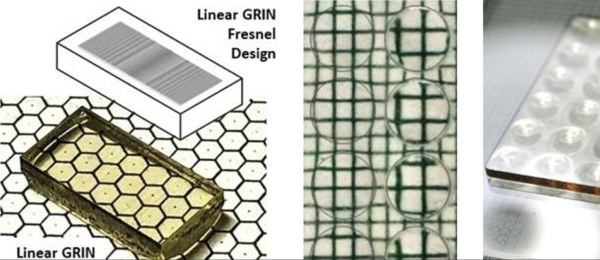

PC-OG SERIES

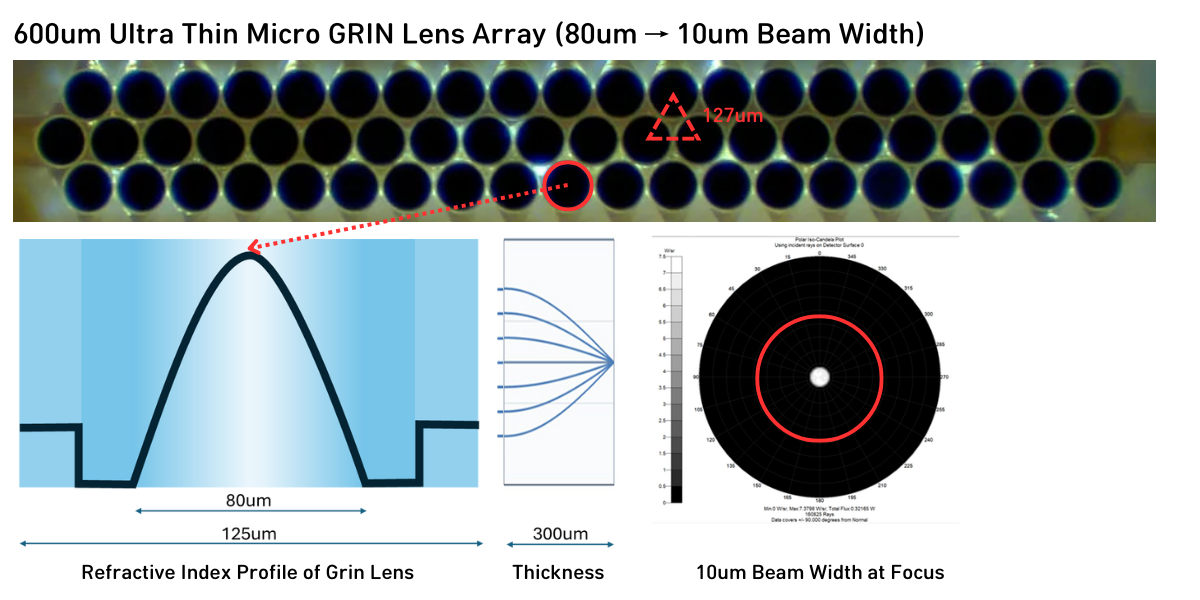

Inkjet print enable custom tailored low refractive index materials to contour the refractive index within lenses itself. This 3D printing is useful for non-radially symmetric phase plates or for off-axis optical systems in which axial symmetry is broken.
Inkjet 3D printing of low refractive index revolutionizes gradient lens fabrication with precision, efficiency, and flexibility. It enables seamless refractive index gradients, enhancing optical performance while reducing material waste and production costs. It also simplifies manufacturing by directly creating complex geometries without extensive machining or polishing. Multi-material printing allows integration of diverse optical properties into a single lens, expanding functionality.

Application:
Inkjet 3D printing with low refractive index
Description:
Extremely low viscosity with high surface 60D hardness
Related Products:
PC-OG Series
